Horizontal

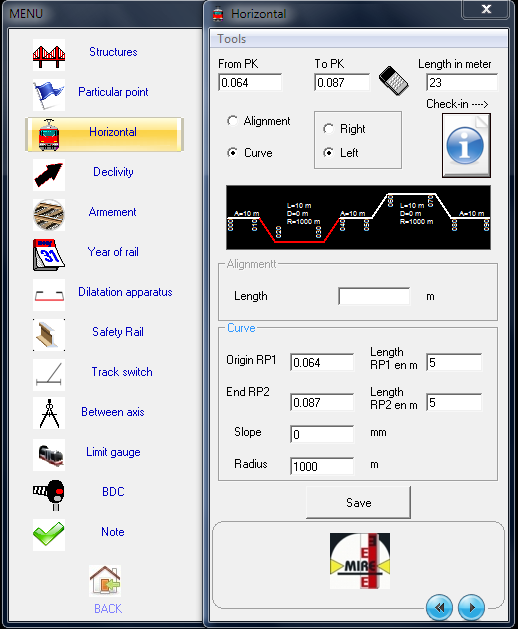

Enter information about the geometry (Pk beginning Pk end, length). Only 2 fields are required, then click to calculate the third information.

Choose the case of an alignment or a curve.
In the case of alignment, the length is calculated automatically, then click Save on this item.
In the case of a curve, indicate if it is left or right, the length of RP1 and RP2, its slant and its radius, then click Save on this item.

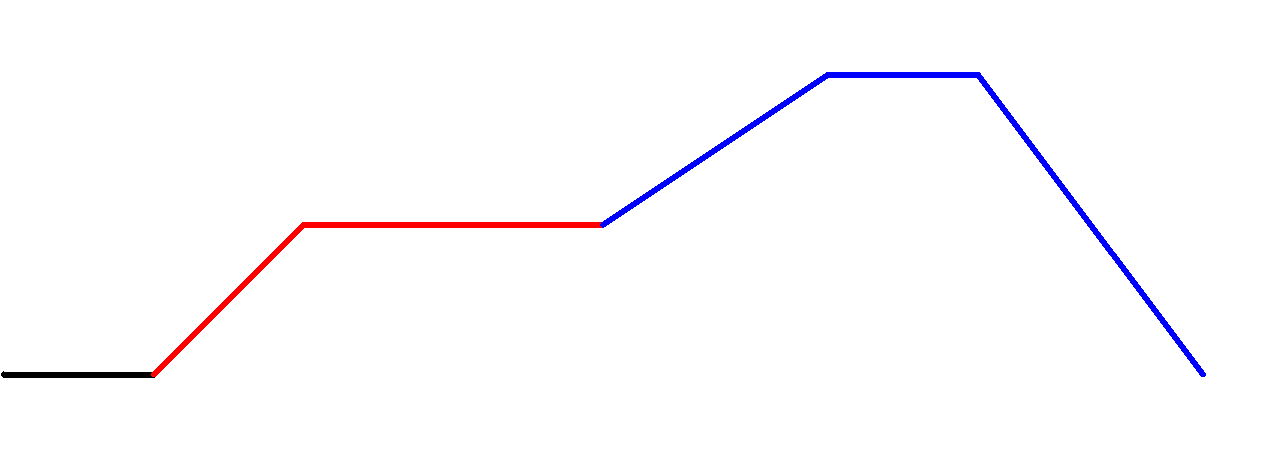

               How Pros : Have two successive curves of the same meaning:

Putting RP2 of the first curve at 0
Enter the second curve normally

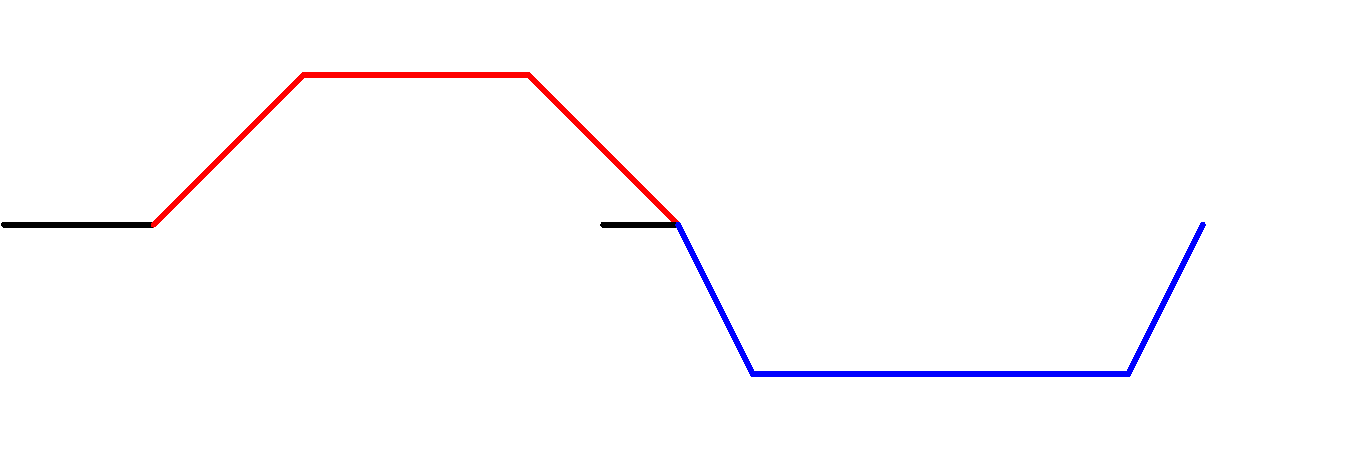

To: Have 2 successive curves of different meanings:
Enter separately the 2 curves normally

Enter separately the 2 curves normally

Upload Land XML values

Click on Tools and then Import a file and select Land XML.

The next dialog lets you select an external file.

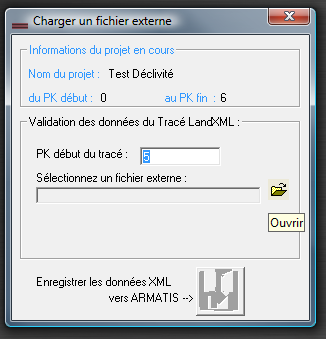

1. Enter a PK early reference, or to start drawing.
2. Click to select an external file.

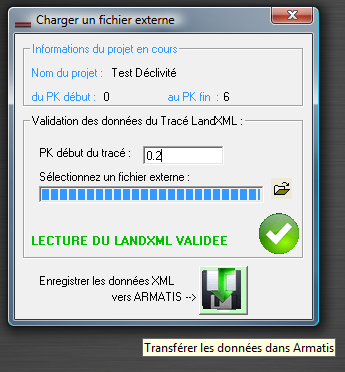

3. Once the file is validated by the system, click to save the data to the database ARMATIS.

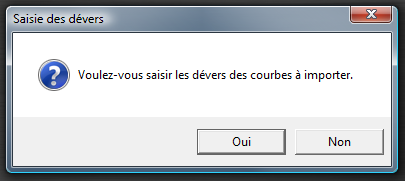

4. Then enter if you want, the curves cannot import

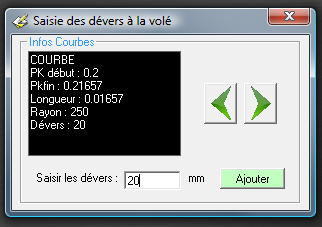

Click on the arrows to view the records, once the value entered, click Add.
